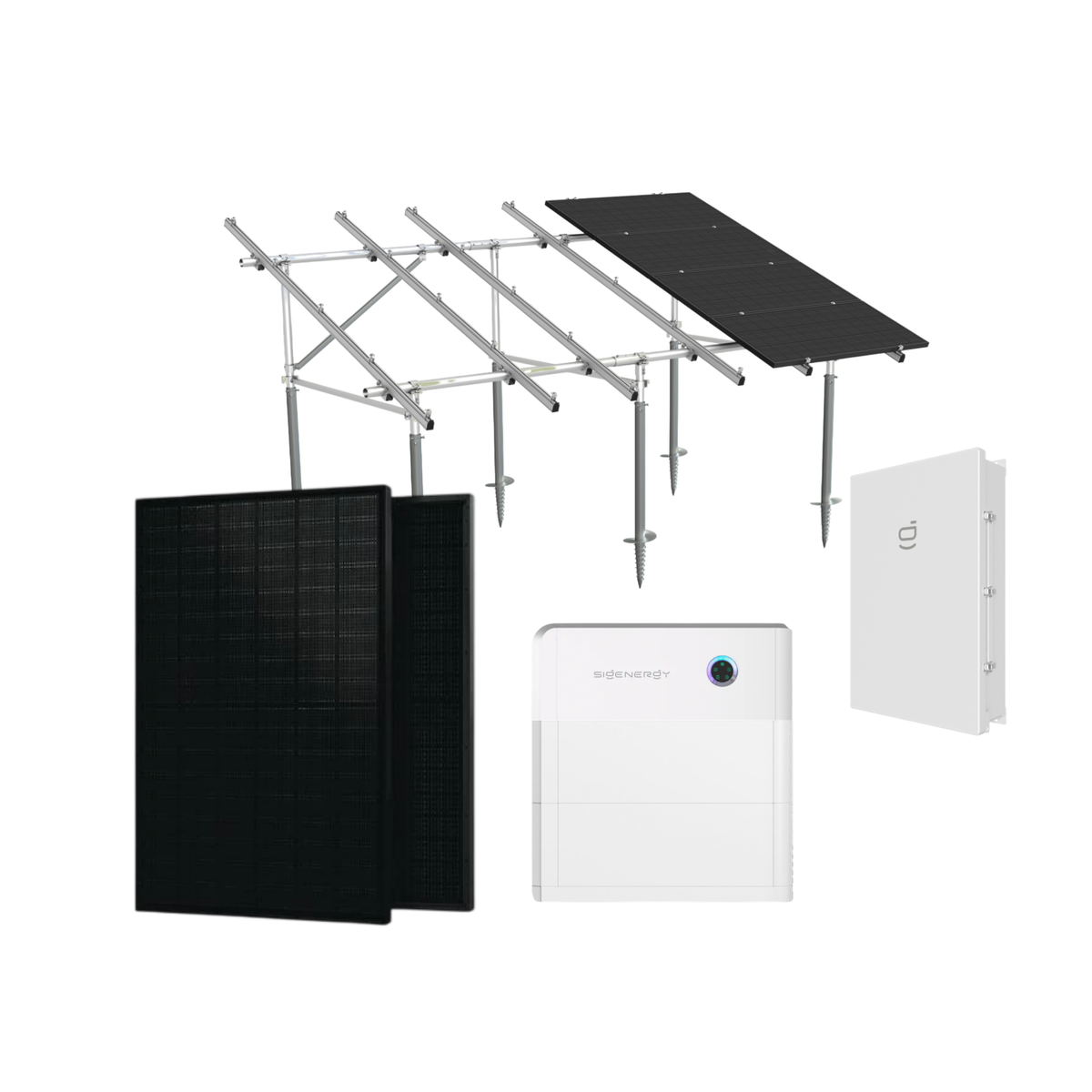

Sigenergy SigenStor 18kWh + Hanersun 440W + SunTurf Ground Mount Solar Bundle

FREE SHIPPING on this complete bundle to the contiguous United States.

A fully integrated 10.56kW solar + 18kWh battery backup system - everything needed for a grid-tied home solar installation with whole-home energy storage. This bundle pairs 24 high-output Hanersun 440W all-black panels on a Sunmodo SunTurf ground mount with the Sigenergy SigenStor ecosystem: a split-phase hybrid inverter, the SigenStor LoadHub for whole-home backup, and two 9 kWh battery packs for 18 kWh of total storage. AI-optimized energy management, 0ms backup switching, and a modular design that grows with your needs. Note: Ground anchoring hardware (helical piles, ground screws, or concrete footings) is NOT included.

What's Included

Solar Panels

• 24x Hanersun 440W All-Black Solar Panels - 10,560W (10.56kW) total DC capacity; monocrystalline PERC, all-black aesthetic, 25-year linear power warranty, 12-year product warranty

Ground Mount Hardware (Sunmodo SunTurf)

• 8x Pipe Uni T-Cap - Pipe-to-rail T-cap connectors
• 8x Pipe 120" (10 ft) - Main horizontal pipe sections
• 8x Pipe 112" (9.33 ft) - Secondary horizontal pipe sections
• 6x Splice Pipe - Internal pipe splice couplers
• 6x Brace 92" (7.67 ft) - Diagonal bracing for structural rigidity
• 1x Ground Lug SMR - Equipment grounding lug for code-compliant array grounding
• 12x SMR300 212" Rail - Full-length aluminum panel rails spanning the array
• 24x SMR300 U-Clamp - Rail-to-pipe clamps
• 14x Pipe Clamp - Structural pipe-to-pipe clamps at brace points
• 36x Clmp Mid SMR Blk - Black mid-clamps securing adjacent panels along each rail
• 24x Clmp End Blk SMR - Black end-clamps for outermost panel edges
• 24x Pipe Cap SMR300 - Rail end caps for a finished installation

Energy Storage & Backup (Sigenergy SigenStor)

• 1x Sigenergy SigenStor Split Phase Hybrid Inverter (3.8-11.5 kW) - Grid-tied hybrid inverter supporting solar input, battery charge/discharge, and whole-home backup. Compatible with the SigenStor ecosystem, mySigen app monitoring, and V2X-ready future upgrades
• 1x Sigenergy SigenStor LoadHub - Whole-home backup hub with 200A single-phase support; 0ms load-side disruption for seamless grid-to-backup transition; smart load management via mySigen App; supports generator integration with 2-wire auto-start
• 2x Sigenergy SigenStor 9 kWh Battery Pack (18 kWh total) - LiFePO4 chemistry; 9.04 kWh nominal / 8.76 kWh usable per module; 4,600W continuous / 6,900W peak per pack; 100% depth of discharge; stackable and expandable up to 54.24 kWh per inverter; 10-year warranty

⚠ Ground Anchoring Not Included: All above-ground structural pipe, rail, and panel hardware is included. Ground anchors (helical piles, ground screws, driven steel pipes, or concrete footings) are site-specific and must be sourced separately. Contact Solwel for compatible Sunmodo anchoring options.

System Overview

• Solar Capacity: 10,560W DC (10.56kW)
• Battery Storage: 18.08 kWh nominal / 17.52 kWh usable (2x 9 kWh SigenStor)
• Inverter Output: 3.8-11.5 kW AC, split-phase (120/240V)
• Backup Coverage: Whole-home via LoadHub, 200A single-phase
• Backup Transition: 0ms load-side disruption (no flicker, no interruption)
• Battery Chemistry: LiFePO4 (lithium iron phosphate)
• Battery Expandability: Up to 54.24 kWh per inverter (add more SigenStor packs)
• Ground Mount: Sunmodo SunTurf pipe-and-rail, tilt-adjustable 15-35 degrees
• Panel Warranty: 25-year linear power / 12-year product (Hanersun)
• Battery Warranty: 10 years (Sigenergy)
• Monitoring: mySigen App (iOS and Android, free)

Key Features

• Complete Solar + Storage Solution - Panels, ground mount, inverter, backup hub, and batteries in one kit; no separate sourcing of major components needed
• Whole-Home Backup - The SigenStor LoadHub supports the entire home's electrical panel (200A), not just critical loads, during grid outages
• 0ms Backup Switching - Sigenergy's patented power control algorithm transitions to battery/solar power with zero load-side disruption - lights, appliances, and electronics never notice an outage
• AI-Optimized Energy Management - SigenStor inverter uses machine learning to optimize charge/discharge cycles, VPP scheduling, and energy planning based on your usage patterns
• Modular and Expandable - Add more SigenStor battery packs (up to 54.24 kWh) or connect additional inverters in parallel for larger systems as your needs grow
• Ground Mount Flexibility - SunTurf system works with any ground anchor type; tilt angle adjustable from 15-35 degrees in the field to maximize generation for your latitude
• LiFePO4 Safety - Lithium iron phosphate chemistry provides superior thermal stability, no thermal runaway risk, and a longer cycle life vs. NMC batteries
• Free Shipping - This complete bundle ships free to the contiguous United States

Documentation

• Sunmodo SunTurf Ground Mount Docs - Cut sheets, installation manual, and state-stamped engineering packages
• Sigenergy product documentation available at sigenergy.com; mySigen App available free on iOS and Android

Applications

• Homeowners with open land seeking a ground-mounted solar + backup system
• Whole-home energy independence with significant battery backup capacity
• Rural properties, farms, and locations prone to grid outages
• Customers seeking to maximize self-consumption and minimize utility bills
• Future-ready homes planning to add EV charging (V2X-compatible SigenStor ecosystem)

Frequently Asked Questions

Does this include everything I need to go solar?
This bundle covers the major components: panels, ground mount structure, inverter, backup hub, and batteries. You will also need ground anchors (site-specific), electrical wiring, conduit, disconnects, and a licensed installer. The SunTurf kit includes all above-ground structural hardware.

Can I expand the battery storage later?
Yes. The SigenStor system supports up to 54.24 kWh of battery storage per inverter. Simply add additional 9 kWh SigenStor battery packs - Solwel sells them individually.

What happens during a power outage?
The SigenStor LoadHub detects the grid outage and transitions your entire home to battery + solar power in 0ms - no flickering, no interruption. The system continues to operate on solar during the day and battery at night until grid power is restored.

Does this support EV charging?
The Sigenergy ecosystem is V2X-ready and supports EV DC charging via the SigenStor EV DC Charger (sold separately). The inverter and LoadHub in this bundle are compatible with future EV charger additions.

What ground anchor type should I use?
The appropriate anchor depends on your soil conditions and local engineering requirements. Common options include helical piles, ground screws, or concrete piers. Sunmodo offers compatible helical anchors; contact Solwel for sourcing assistance and state-stamped engineering packages through the Sunmodo knowledgebase.
